Toilet Flushing Cisterns
Products
Home

Cisterns and Frame

Concealed Cistern

Universal European concealed flushing cistern

Universal European concealed flushing cistern

Universal concealed cistern,model CJ722 cistern for front or top operation.Thickness of cistern 135mm.

  • Item NO.:

    CJ722
  • Order(MOQ):

    200
  • Payment:

    30% deposit.
  • Product Origin:

    China
  • Color:

    white/black
  • Shipping Port:

    Xiamen Port
Product Details

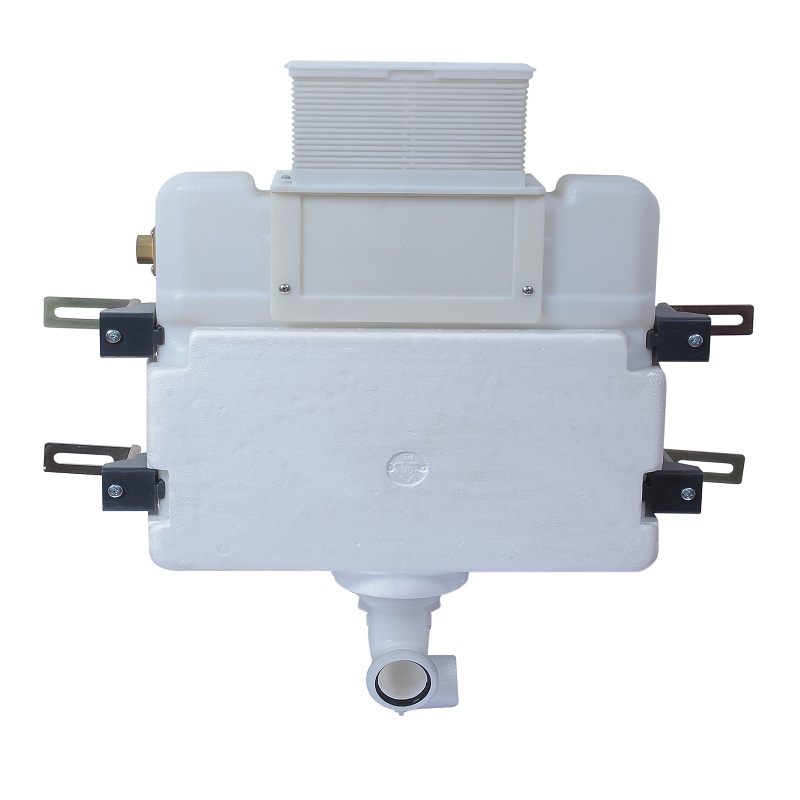

Universal European Concealed Flushing Cistern


Cistern:

Made of HDPE by blow moulding with very high strength.

With EPS insulation shell bonded to the exterior of cistern to prevent the formation of water condensation.

84mm thicknesss including EPS shell,saves maximum spaces.

Capacity suitable for 3/4.5 litres,3/6 litres, and 4/7 litres.

Inlet Valve:                                                                                                                                            The inlet valve is designed with very low noise,very accurate  control of water level,high resistance to high pressure and sensitive response under very low pressure,with normal working pressures from 20kpi and 1000kpi.

Tested under the salted water.5 years guranttee.

Outlet valve:

The outlet valve is specially designed that the flush volume can be adjusted precisely and easily according to customer's different requirments,and can be replaced very easily.

Can be adjusted to 3/4.5 litres,3/6 litres, and 4/7 liters.

Silicone seal washer allows excellent sealing tightness,anticorrosion and long life span.

Quick Details

Place of Origin: Fujian, China
Brand Name: OEM/ODM
Thickness:
135mm
Feature: Concealed Tank, Dual-Flush
Type: Lower Cistern
Toilet Tank Material: HDPE
Product Name: concealed cistern
Model No.: CJ722
Height: 820 mm
Cistern Material: HDPE
Certifications: CE/WRAS
Width: 120-193mm
Length: 547 mm
Flush volume: 3/4.5,3/6, 4/7 L
Frame: 40*20*2.5mm
Flush Plate: chromed ABS

lower british cistern

Cistern dimenstion:

cistern
