Electronic Toilet Booster seat for Agedcare Disabled healthcare

Electronic Toilet Booster seat for Agedcare Disabled healthcare

L002-000 Toilet Booster with CE certification , Toilet lift to help Aged Disabled people standup easily !

  • Item NO.:

    L002-000
  • Order(MOQ):

    20
  • Payment:

    30% deposit.
  • Product Origin:

    China
  • Color:

    white
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    30-45 working days
Product Details

Electronic Toilet Booster seat for Agedcare Disabled healthcare !


Effort-saving solution with adjustable toilet height and position to raise body up from the toilet.Electronic toilet booster to help Aged Disabled people standup easily.


Feature:

Tilt lifting meets the needs of the elderly and people with reduced mobility

Max. Load  of 200kgs

Foldable arm design to save space, with max. load of each side: 120kgs.

Easy access design with operation buttons on the right armrest, for raising body up from the toilet

Three installation height positions for armrest and backrest, with the interval of 20mm.

Adjustable height of support on the ground suitable for different height of floor-standing and wall-hung toillet.



Material:

Brackrest: PU soft material with multi-layer plywood and steel support inside

Armrest: PP  material with steel support inside

Booster Body: steel panel with coating finish

Protective cover:  Plastic PS


Technical Specification:

MODEL  L002-000
Product name Electric toilet booster
Lifting way tilt lifting
tilt angel range 0~15°
body powder coating steel
Rated Voltage

AC 220-240V,50/60Hz

Electric current 1.6A
Duty cycle 10%, Max. 2 min operate/Min. 18min stop
Drive mode DC motor lead screw
Operation switch Push-button switch
Length of power cord 2.0M
Max. Load weight 200kg
waterproof rating IPX4
Ambient temperature 4~40℃
Net weight 18kg
Dimension L:580xW:711xH:842mm

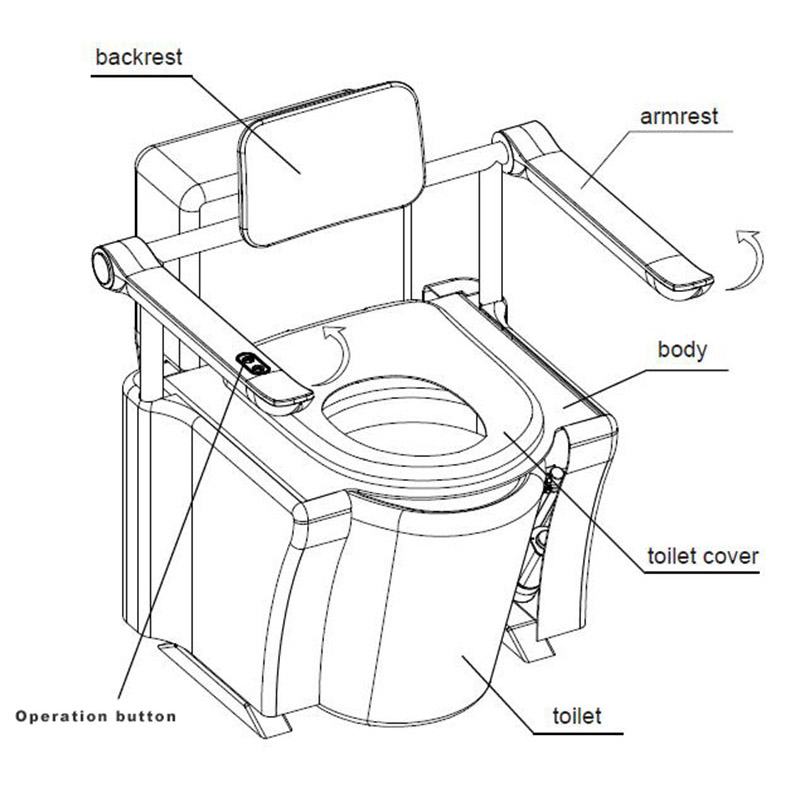

Technical Drawing:

Toilet lift drawing


Trouble Shooting:

Problem Potential cause Suggested action
Appliance cannot work 1.The power supply may not be turned on  Please turn on the power
2.Adapter and controller are not well connected  Please connect the adapter and the controller
3.Electric push rod and the controller are not wellconnected Please insert the power plug of the electric push rod into the controller
4.Lifting button and the controller are not well connected  Please insert the power plug of the lifting button into the controller
When operate, only one side is
lifted and obvious deformation
is found on the frame
1.One of the electronical push rods is not well connected to the controller Please assure both of electronical push rods are well connected to the controller
2.Broken power wire of the electronical push rod  Please assure both power wires of electronical push rod are in good condition
When seated and lifted, there
is obvious flipping forward of
the seat
1. The bottom plate of the toilet booster and the floor are not duly fixed by tack-free glue Please assure to glue the tack-free glue on the bottom plate firstly before fix on the floor
2.Tack-free glue is not completely solidfied  Please keep 24 hours to make the tack-free glue completely solidfying
3.The nut on adjustable feet and bottom plate are not tightly screwed Please assure the nut is tightly screwed
4.No tack-free glue or expantion nut are applied to fix the ceramic and floor Please assure to fix well of the ceramic and the floor by using the tack-free glue or expansion nut

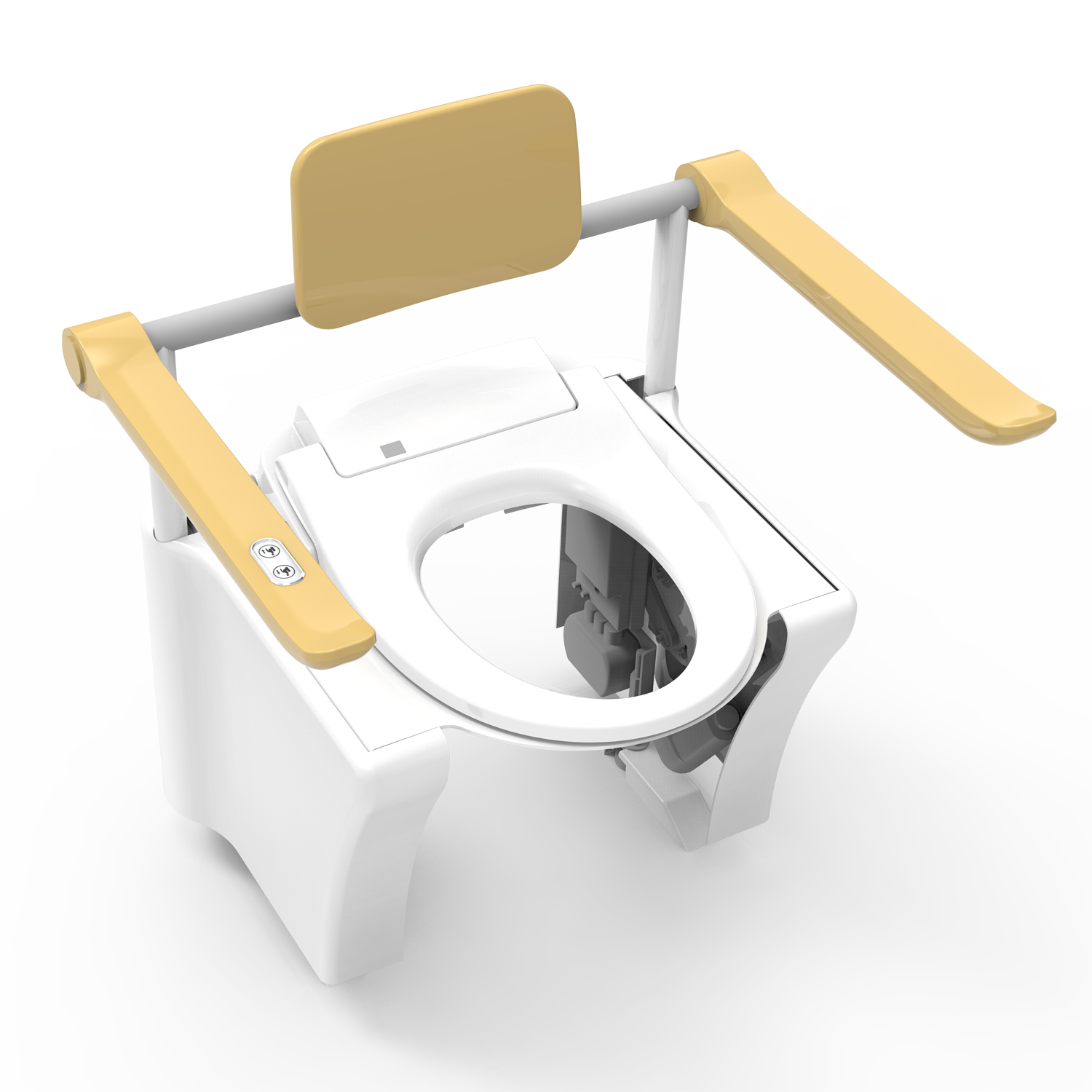

Products photos:

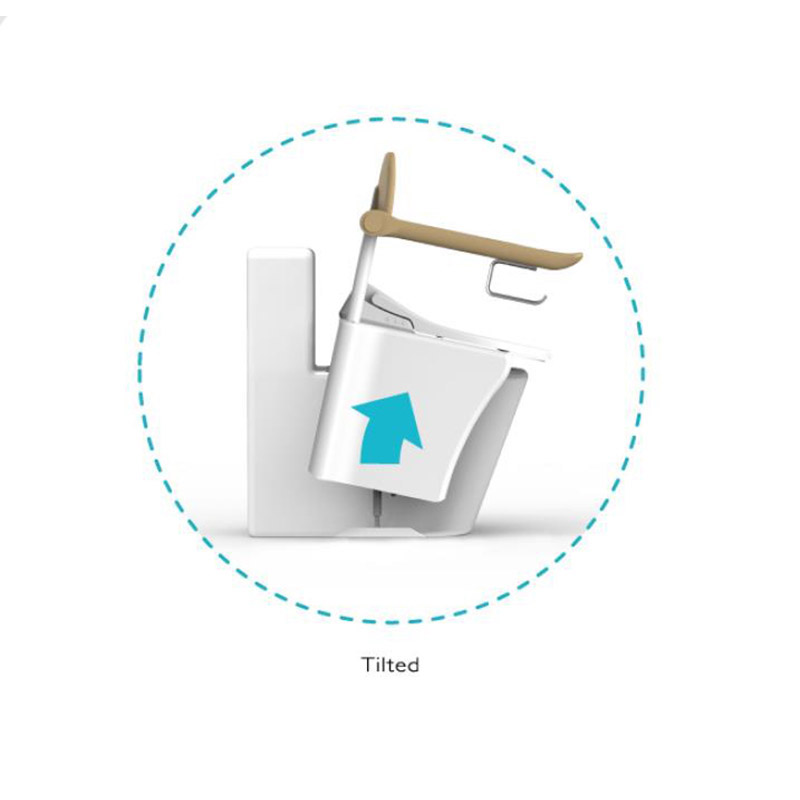

Toilet lift Function list
