OEM ODM good quality concealed flushing cistern

Concealed Cistern:

Made of HDPE by blow moulding with very high strength.

With EPS insulation shell bonded to the exterior of cistern to prevent the formation of water condensation.

84mm thicknesss including EPS shell,saves maximum spaces.

Capacity suitable for 3/4.5 litres,3/6 litres, and 4/7 litres.

Inlet Valve:

The inlet valve is designed with very low noise,very accurate  control of water level,high resistance to high pressure and sensitive response under very low pressure,with normal working pressures from 20kpi and 1000kpi.

Tested under the salted water.5 years guranttee.

Outlet valve:

The outlet valve is specially designed that the flush volume can be adjusted precisely and easily according to customer's different requirments,and can be replaced very easily.

Can be adjusted to 3/4.5 litres,3/6 litres, and 4/7 liters.

Silicone seal washer allows excellent sealing tightness,anticorrosion and long life span.

Quick Details

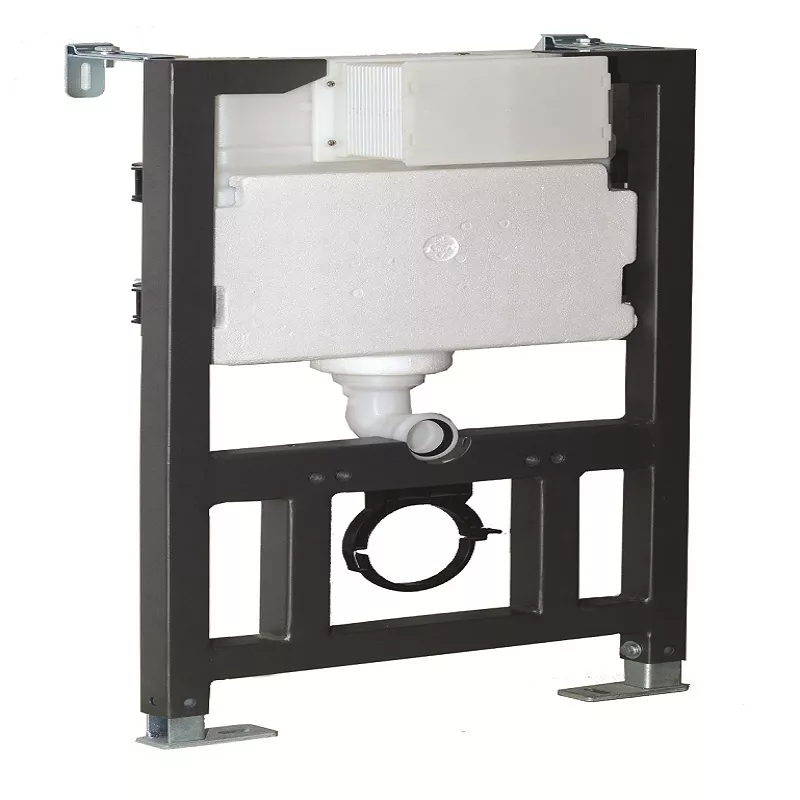

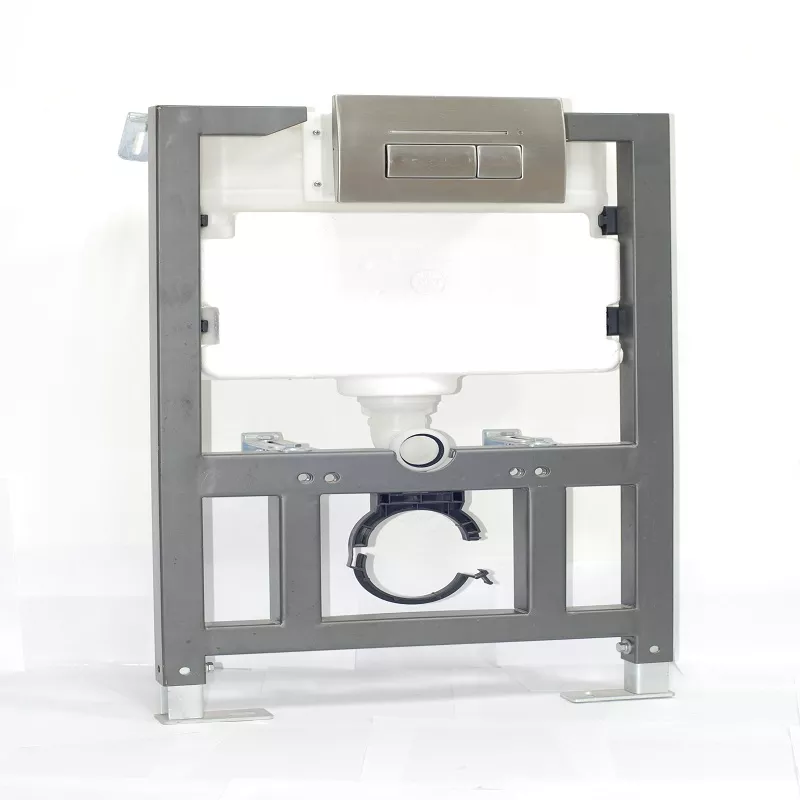

Product photoes:
