Aged care Disabled Healthcare equipment Electric Toilet Lifter

Aged care Disabled Healthcare equipment Electric Toilet Lifter

L003-000 Toilet Lifter with CE certification , Toilet lift to help Aged Disabled people standup easily !

  • Item NO.:

    L003-000
  • Payment:

    30% deposit.
  • Product Origin:

    China
  • Color:

    white/black
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    30-45 working days
Product Details

Aged care Disabled Healthcare equipment Electric Toilet Lifter !


Effort-saving solution with adjustable toilet height and position to raise body up from the toilet.Toilet lift to help Aged Disabled people standup easily.


Feature:

Adjustable Height Range: 0-200mm

The distance from the top of the ceramic to the floor is around 410-610mm

Max. Load : 400kgs

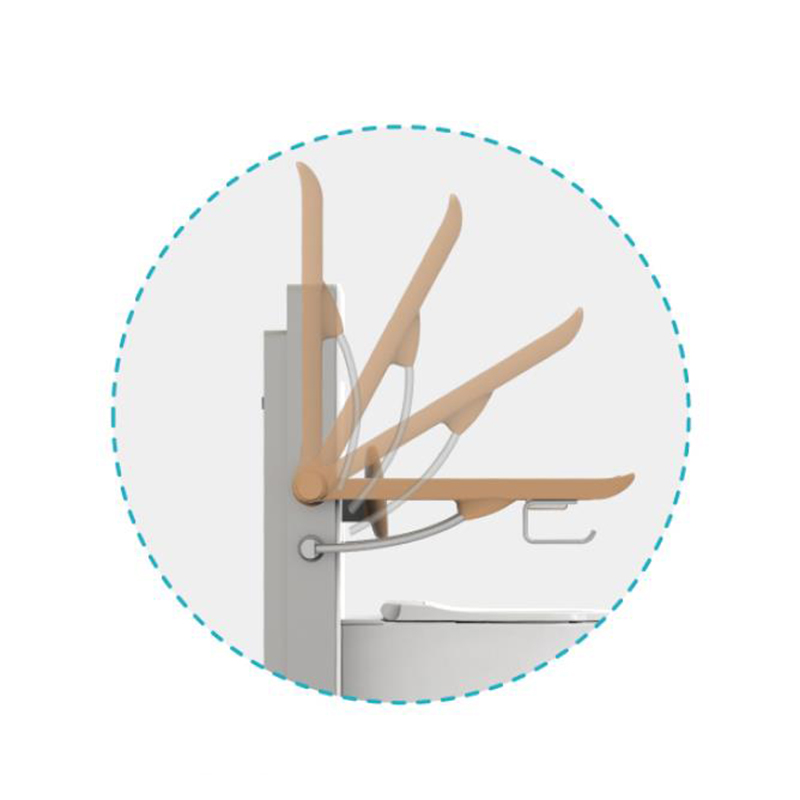

Armrerst:Foldable arm design to save space, with max. load of each side: 120kgs.

Easy to remove and install;

Cabinet Cistern: removable top cover, easy for maintenance

Easy access design with operation buttons on the right armrest, for raising body up from the toilet.

Three installation height positions for armrest and backrest, with the interval of 20mm.


Material:

Brackrest: PU soft material with multi-layer plywood and steel support inside

Armrest: PP  material with steel support inside

Cabinet Cister: Aluminum side + steel frame support_ tempered glass front glass


Technical Specification:

MODEL L003S-000-B01/ L003S-000-W01/ L003S-001-B01/ L003S-001-W01
Product name Electric toilet lifter
Displacement of water tank 3L(half flush)/6L(full flush)
Lifting way Vertical lift
Rated Voltage AC 220-240V,50/60Hz
Max. power 200W
Drive mode DC motor lead screw
Duty cycle 10%, Max.2 min operate/Min.18min stop
Operation switch  Push-button switch
Adjustable lifting range 200mm
Max Load weight 200kg
Length of power cord  2.0M
waterproof rating IPX4
Ambient temperature  4~40℃
Net weight 54kg
Dimension  H:1099xW:543xT:163mm
Ways of drainage floor/wall drainage
Color of glass panel white/black

Technical Drawing :

1. Floor Drainage:

Toilet Lifter floor drainage


2. Wall Drainage :

Toilet Lifter wall drainage




Trouble Shooting:

Problemm Potential cause Suggested action
Appliance cannot work 1.The power supply may not be turned on Please turn on the power
2.Power cord and controller are not well connected Please connect the Power cord and the controller
3.Electric push rod and the controller are not well connected Please insert the power plug of the electric push rod into the controller
4.Lifting button and the controller are not well connected Please insert the power plug of the lifting button into the controller
Obvious abnormal sound occurs during lifting 1.The cabinet frame touches the angle valve or power socket on the wall Please move the installation position of the cabinet to ensure that it does not interfere with the wall angle valve and power socket
2.The back decorative cover of the cabinet interferes with the wall Please add gasket on the back of the cabinet frame to ensure the gap between the frame and the wall
3.The decorative cover at the bottom of the cabinet touches foreign matters Please remove the foreign matters at the bottom of the decorative cover
4.Glass panel touches foreign matters Please remove the foreign matters at the bottom of the glass

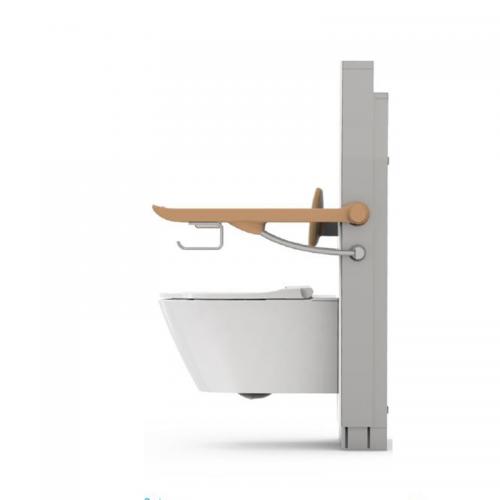

Products photos :


Toilet Lifter Function list

Toilet Lifter bathroom Design
